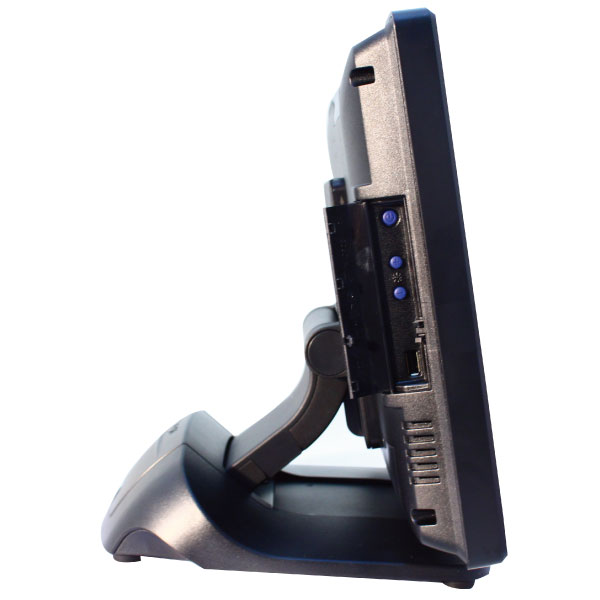

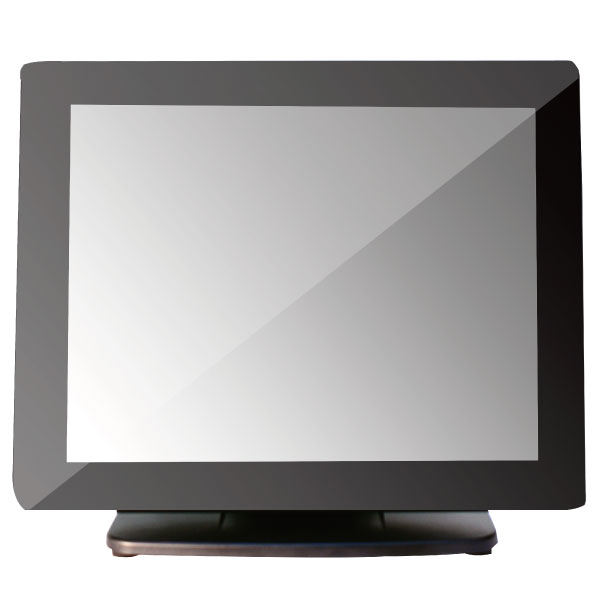

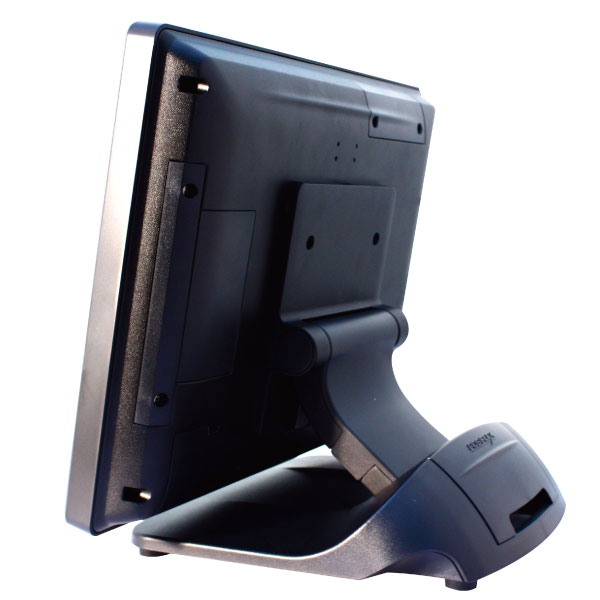

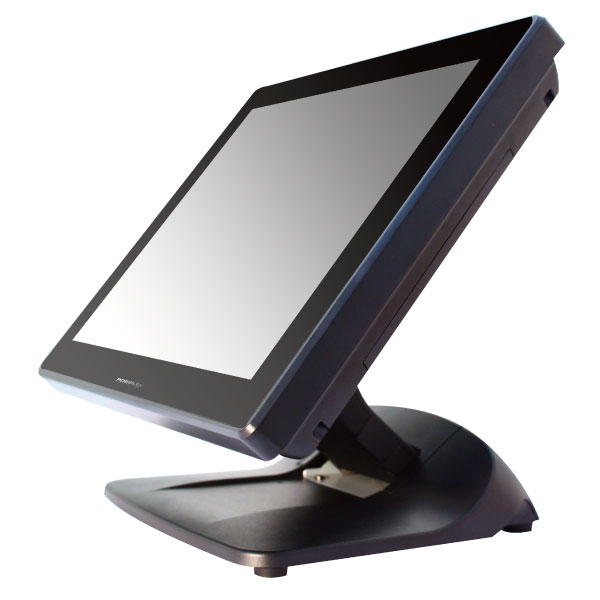

XT-3815

XT-3815 is the new Bay Trail based fanless terminals in the XT family. It is positioned to slot in, performance wise, between XT-3015/3215 running Intel D525 CPU and XT-5315 running Intel Celeron CPU. It represents great cost/performance value

Categories: , ,
  • Intel Bay Trail Celeron CPU, 2GHz up to 2.42GHz, Quad Core, 2MB Cache
  • DDR3L SO-DIMM slot x 1, max 8GB
  • True Flat PCAP touch with 10 points multi-touch
  • GEN7E or optional GEN8E foldable base (U.S. Patent #9004436)
  • Support Windows 7, POSReady 7, WE 8.1 Industry, DOS
Specification JIVA XT-3815
System Configuration
Processor Intel Bay Trail Quad Core Celeron J1900, 2GHz up to 2.42GHz, 2M Cache
System Memory DDR3L 1333MHz SO-DIMM x 1, max. 8GB
Storage Device SATA Storage x 2 (one for HDD/SSD; the other for 1” SSD only) or Optional eMMC module
RAID Function N/A
Power Supply 12V / 60W
OS support Windows 7 / POSReady 7 / Windows Embedded 8.1 Industry / DOS/ Linux per request
Display & Touch
LCD Display 15″ TFT LCD
LCD Resolution 1024 x 768
Touch Function True-flat PCAP touch with 10 pts multi-touch support (IP65 on front panel)
I/O & Expansion
Serial Port 4, 4 on I/O plate (DB9 x 3 + RJ50 x 1), 5V/12V support on all 4 COM ports
Parallel Port 1, via optional conversion cable
Standard USB Port 7, 1 x USB 3.0/2.0 + 6 x USB 2.0
Powered USB Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port 10 / 100 / 1000 Mb x 1
VGA Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
PS/2 Keyboard N/A
UPS Port Yes
Audio Internal 2W speaker x 1
Extension Slot mini-PCIe slot x 1
Built-in Device
Built-in MSR N/A
Built-in Keyboard N/A
Built-in Printer N/A
Built-in FPU N/A
Built-in WIFI Optional mini-PCIe WIFI module
Built-in RFID Reader N/A
Built-in Smartcard Reader N/A
Built-in Handset & Mic N/A
Built-in Webcam N/A
Physical Dimension
Dimension (W x D x H in mm) 372 x 320 x 252.7
Weight (N. W. in kg) 5.6
Environmental
Operating Condition 0°C – 40°C, 20%RH – 90%RH (Equipped with HDD);
0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition -20°C – 70°C, 10%RH – 90%RH
** The product information and specifications are subject to change without prior notice.

XT-3815-brochure

For Drivers, User manuel or other download requirement, please mailto: tech@quripos.eu
