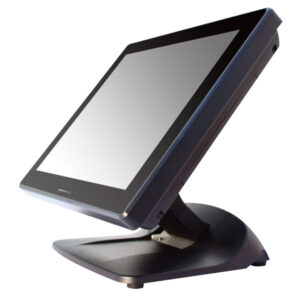

QX-1900 / QS-525

  • Multiple technological platforms (M22, M62 motherboards)
  • True-Flat Projected Capacitive Technology
  • Fanless design (M22, M62)
  • IP65(Front only)
  • Rich I/O and rich peripheral options
  • Die-casting rear housing for optimum thermal dissipation
  • Cable cover to help preventing unwanted tempering
  • Wide tilt angle customer display for easy and comfortable viewing
  • Discreet yet easy to access power button
  • Standard 100×100 VESA holes for pole-, wall-, and stand-mountingsQS-525/QX-1900 Sales Kit
Categories: ,
  • Multiple technological platforms (M22, M62 motherboards)
  • DDR3, SO-DIMM x 1, 2GB (Max. 4GB)
  • True Flat PCAP touch with 10 points multi-touch
  • GEN7E or optional GEN8E foldable base
  • Support Windows 7, POSReady 7, WE 8.1 Industry, DOS

QuriPOS



Model
Number

QS-525

QX-1900

CPU
Support

Intel
Pineview D525 processors 1.8GHz


Intel Bay Trail- D J1900 2G, L2 2M

System
Memory

DDR3,
SO-DIMM x 1, 2GB (Max. 4GB)

DDR3L,
SO-DIMM x 2, 2GB (Max. 8GB)

Storage

HDD

320GB 2.5”x 1

SSD

SSD x 1
(Optional)

LCD

Size

15″
TFT LED LCD Panel

Brightness

350cd/m2
(Typ.)

Resolution

1024 x 768

Touch
Screen

True-Flat
Projected Capacitive Touch

Tilt
Angle

0 ~ 120
degree

External
I/O Port

Rear

6 x USB
2.0  Ports

3 x Serial
port (RJ45);  (COM1~2
: 0/5/12V by BIOS; COM3:0/5V by BIOS)

3 x Serial
port (RJ45);  (COM1~3: 0/5/12V
by BIOS)

1 x VGA
(Power enable by BIOS; +12V)

1 x Cash
Drawer Port (RJ11; +12V)

1 x LAN
(10/100/1000)

1 x
Mic-In/Speaker-out (Combo Jack)

1 x DC In

1 x Power
Switch

Speaker

2 x 2W
speaker (Optional)

Power

External
power adapter, 60W/12V  (Lock type)

EMC
Safety

CE, FCC
Class A

Environment

Operating
Temperature

0°C ~ 35°C

Storage
Temperature

 -20°C ~ 60°C

Operating
Humidity

20% – 85%
RH non condensing

Storage
Humidity

20% – 85%
RH non condensing

OS
Support

Windows® 7
Professional
Window 10 IoT
Windows® Embedded POSReady 7
Linux Windows 8.1 ( only for QX-1900 )

Wall
Mount

VESA 100 x
100mm



MSR
(USB)

MSR
MSR + Finger Print (Combo)
MSR + iButton (Combo)
MSR + RFID (Combo)

Customer
display

Flush mount
VFD display, 2×20 characters

2nd
Display

10″
(1024 x 768)








QS-525/ QX-1900 DOWNLOAD

For Drivers, User manuel or other download requirement, please mailto: tech@quripos.eu
