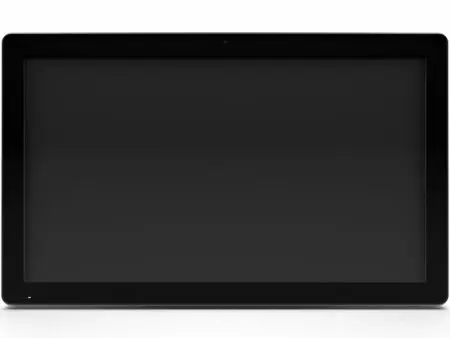

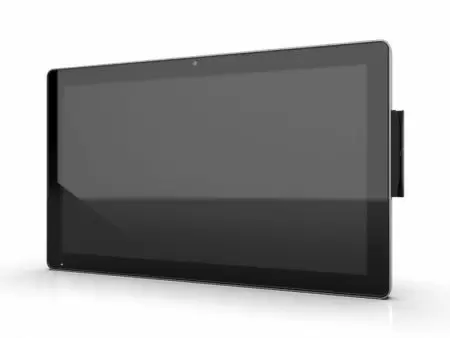

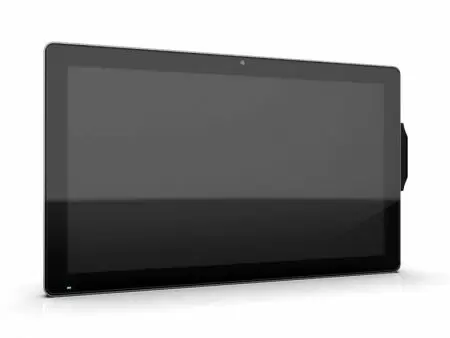

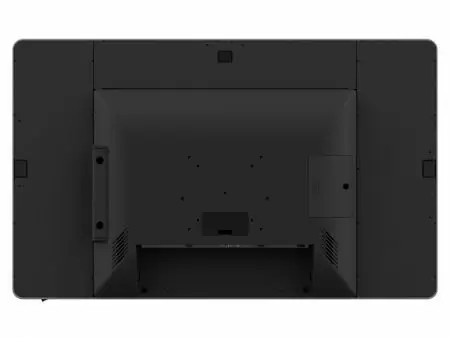

Kitchen Panel PC is using Intel Elkhart Lake J6412 CPU, 23.8″ Full HD LCD, and a PCAP touch. The product life is 7 years minimum. As same as Kitchen Computer, it has IP65 water and dustproof at the front, and the camera module is also available to choose from. Whenever you wanted to find some recipe, buy something online, check your emails, or even make a video call to your friend, you don’t need to get another computer, or turn the computer on and wait for Windows to load. It can also be used as an ordering display, information center, kiosk terminal, and interactive service center.
All-in-One industrial mainboard.
Intel Embedded CPU (7-12 product life).
23.8″ Full HD (1920 x 1080) LED LCD.
Die-casting housing for extreme working condition.
Quick storage replacement.
Fan-less design make it noise less.
IP65 water and dustproof protection.
Easy services, 2 screws and 3 cables to replace the touch and the LCD.
| Model | Kitchen PC, P3224 M82 | ||
|---|---|---|---|
| CPU Support | Intel® 10th Gen. Elkhart Lake Platform | ||
| Celeron J6412 2.0GHz / 2.6GHz burst mode(4 Cores) | |||
| System Memory | 2 x SO-DIMM, DDR4 (Max. 32GB) | ||
| Storage | HDD | 1 x 2.5″ HDD (Option) | |
| SSD | 1 x 2.5″ SSD | ||
| M.2 | 1 x M.2 bay (size: 22 x 80 mm, socket 2 B key, for storage only) | ||
| LCD | Size | 23.8″ Full HD LED LCD Panel | |
| Brightness | 300cd/m² (Typ.) | ||
| Resolution | 1920 x 1080 | ||
| Touch Screen | True-Flat Projected Capacitive Touch (P-CAP) | ||
| Tilt Angle | 0 ~ 120 degree | ||
| External I/O Port | Rear | 4 x USB 3.0 Ports & 2 x USB 2.0 | |
| 4 x Serial ports (3 x RJ45 & 1 x extension cable); (Power enable by BIOS; 0/5/12V) |
|||
| 1 x Parallel port* (Optional, by extension cable) | |||
| 1 x VGA (Power enable by BIOS; +12V) | |||
| 1 x HDMI OUT | |||
| 1 x Cash Drawer Port (RJ11; +12V / 24V) | |||
| 1 x LAN (10 / 100 / 1000) | |||
| 1 x Mic-In / Speaker-out (Combo Jack) | |||
| 1 x DC In | |||
| 1 x Power Switch | |||
| Speaker | 2 x 2W speaker (Option) | ||
| Power | External power adapter, 84W / 12V (Lock type) | ||
| EMC Safety | CE, FCC Class A | ||
| Environment | Operating Temperature | 0°C ~ 35°C | |
| Storage Temperature | -20°C ~ 60°C | ||
| Operating Humidity | 20% – 85% RH non condensing | ||
| Storage Humidity | 20% – 85% RH non condensing | ||
| Security & Reliability | TPM 2.0 | ||
| OS Support | Windows® 11 / Windows® 10 IoT / Linux per request | ||
| Peripherals | MSR (USB) | MSR / MSR + Finger Print (Combo) / MSR + i-Button (Combo) / MSR + RFID (Combo) / MSR + EMV + RFID (Combo) | |
| Wall Mount | VESA 75 x 75 & 100 x 100 mm | ||
| System Dimension (W x D x H) | 592.00 x 56.00 x 361.50 mm | ||
| Weight (N.W. / G.W.) | 10 kgs (N.W.) / 11 kgs (G.W.) | ||
| Packing Information | Carton Dimension (W x D x H) |
691 x 17 x 47 cm | |
| Carton per Pallet (105 x 100 cm) |
30 cartons (300 units in a 20-foot container) | ||
